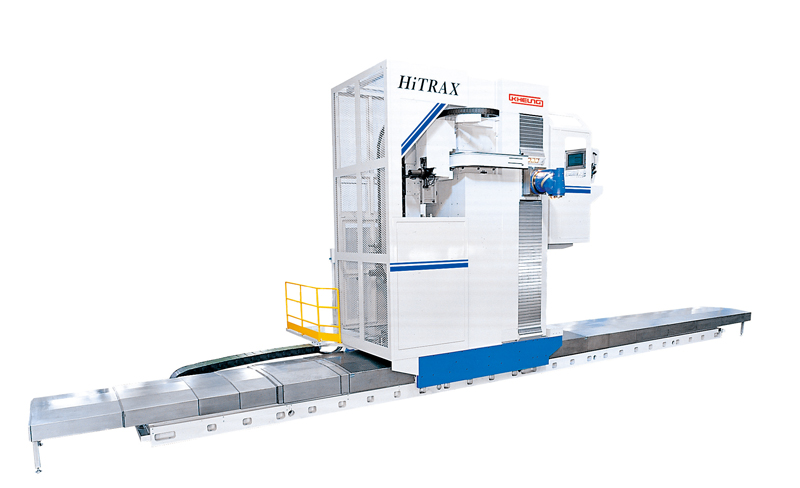

HiTRAX-U Floor type milling center

• Controller: HEIDENHAIN iTNC 530, SIEMENS 840D, FANUC 31i
• X axis: 6000~20000mm (each 2000mm)
• Y axis: 1350,1500mm
• Z axis: 2500,3000,3500mm
• Feed: 10000mm
• Rapid: 18000mm
• Spindle power: 37/51kW

The HiTRAX-U is a very versatile floor-type high precision dynamic milling machine with a universal head. It has a powerful milling performance, using 56kW of power  and 1455Nm of torque. Elevating platform with large window of safety glass, which is supplied as standard, is user-friendly and enables the operator to stay at the ideal working position. There is a wide range of configurations on multiple axes and X-axis movement with a Twin-Drive system is composed of a preloaded rack and pinion system with 2 servo motors for “dynamic movement”. One is actually driving, while the other is braking to be “backlash free”. Also the moving column system provides the perfect coincidence of the reference plane between the column base slide way and the column slide way due to the column weight, so it allows for “spindle vibration-free running”. Suitable solutions are offered for end users who require high flexibility and a wide variety of optional features and accessories,  such as different milling heads, a head changing station, automatic tool change, floor or angle plates, auxiliary tables, rotary table, travelling rotary tables and many other special options thanks to its structure. The machine is ideal for roughing and finishing operations on all parts and can be installed in mould and die operations, aeronautic and power generation industries as well as general shop jobs. To ensure the machine’s ultimate performance and high quality, all machines must pass heavy cutting tests before shipping.

• TRAVEL:
  • Longitudinal (mm): 6000/8000/10000/12000/14000/16000/18000/20000
  • Cross (mm): 1350/1500
  • Vertical (mm): 2500/3000/3500
• FEED:
  • Axis (mm/min): 10000
  • Rapid (mm/min): 18000(X,Y,Z)
  • Drive motor (Nm): 95x2(X), 27(Y), 50(Z)
• SPINDLE:
  • Taper: ISO50
  • Speed (rpm): 4000 (2 step : 0~1125, 1126~4000) Programmable universal head available 2,5° x 2,5° to 0,001 x 0,001
  • Drive motor (kW): 37/56
• WEIGHT (kg): 40000~90000
