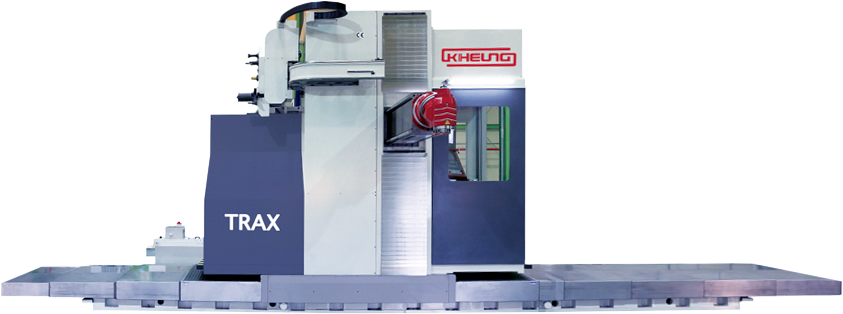

TRAX Floor type milling / boring machine

• Controller: HEIDENHAIN iTNC 530 HSCI SIEMENS 840D SL, FANUC 31i
• X axis: 3000/4000/5000~10000mm (each 1000mm)
• Y axis: 1000/1200mm
• Z axis: 1300/1600/2000mm
• Feed: 15000mm
• Rapid: 25000mm
• Spindle power: 28/42kW(4000/5000rpm), 24/38kW(6000rpm)

The TRAX is a very versatile, floor-type high precision and compact sized dynamic milling/boring machine with a universal head and boring spindle. There is a wide range of configurations on multiple axes and X-axis movement with Twin-Drive system is composed of a preloaded rack and pinion system with 2 servo motors for “dynamic movement”. One is actually driving, while the other is braking to be “backlash free”. Also the moving column system provides the perfect coincidence of the reference plane between the column base slide way and column slide way due to the column weight, so it allows for “spindle vibration-free running”. Suitable solutions are offered for end users who require high flexibility and a wide variety of optional features and accessories,  such as different milling-heads, head changing station, automatic tool change, floor or angle plates, auxiliary tables, rotary table, travelling rotary tables and many other special options thanks to its structure. The machine is ideal for roughing and finishing operations on all parts and can be installed in mould and die operations, aeronautic and power generation industries as well as for general shop jobs. To ensure the machine’s ultimate performance and high quality, all machines must pass heavy cutting tests before shipping.

• TRAVEL:
  • Longitudinal (mm): 3000/4000/5000~10000 (each 1000mm)
  • Cross (mm): 1000/1200
  • Vertical (mm): 1300/1600/2000
• FEED:
  • Axis (mm/min): 15000
  • Rapid (mm/min): 25000
• SPINDLE:
  • Speed (rpm): 4000/5000, 6000 Programmable universal head available 2,5° x 2,5° to 0,001 x 0,001
  • Drive motor (kW): 28/42, 24/38
• WEIGHT (kg): 22000/25000/28000~43000
