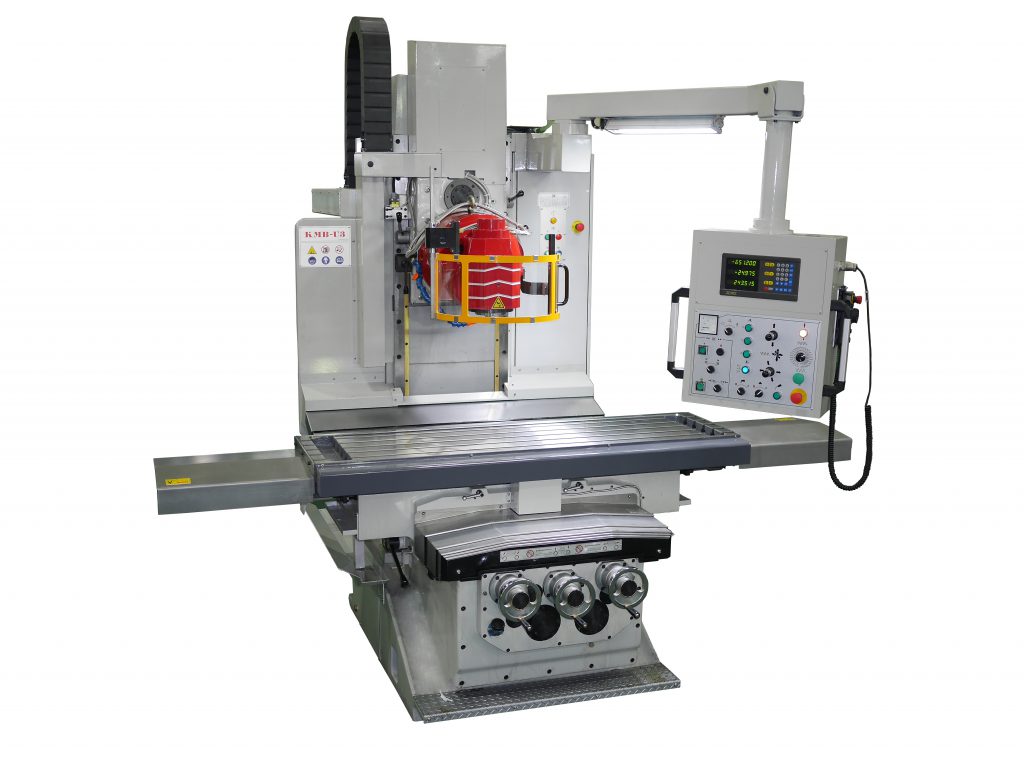

KMB-U3 Bed type milling machine

• Controller: Universal milling machine
• Table dimensions: 470~950 x 1700~3900mm
• X axis: 1200~3200mm
• Y axis: 600~1050
• Z axis: 550~850mm
• Spindle power: 7.5~15kW

The KMB is constructed using professional assembly methods and hand scraping skills. Kiheung`s unique Huron system consists of up head and low head, can be turned to any desired angle and vertical/ horizontal combined angle milling is now possible. The column is of a rugged, box-type construction and its ground slide ways are built wide to support and guide the spindle head securely . (The column of KMB-U6 and KMB-U7 is hardened and ground), the bed is a one-piece construction with a double box of lubrication oil and coolant. The hardened and ground slide ways of the bed provide high stability to the saddle, and the saddle has a rigid box-type construction to deal with loads during heavy-duty cutting. It is supported by the wide slide ways of the bed to assure stable movement and the Biplast (anti-friction material) ensures the smooth movement of the axis. Furthermore, an AC servo motor is equipped with an infinitely variable feed movement, so feed change using a dial on the panel makes for easier operation and choosing of the appropriate feed speed.

• TABLE:
  • Length (mm): 1700
  • Width (mm): 470
  • T-slot/Width/Distance (mm): 5/20/80
  • Max permissible load (kg): 1500
• TRAVEL:
  • X axis (mm): 1200
  • Y axis (mm): 600
  • Z axis (mm): 550
  • Height from table to vertical spindle nose (mm): 40 - 590
  • Height from table to horizontal spindle nose (mm): 50 - 600
• SPEED:
  • Rapid (mm/min): 5000 (X,Y) / 2500 (Z)
  • Feed (mm/min): 2000 (X,Y) / 1000 (Z)
• SPINDLE:
  • Taper: ISO50
  • Speed (rpm): 40-1720(50Hz)
  • Speed (rpm): 40-1620(60Hz) Universal head available 1° x 1° to 0,001 x 0,001
  • No. of spindle speeds (No.): 12
  • Drive motor (kw): 7.5
• FLOOR SPACE:
  • Length (mm): 3960
  • Width (mm): 2450
  • Height (mm): 2600
• WEIGHT (kg): 6000
